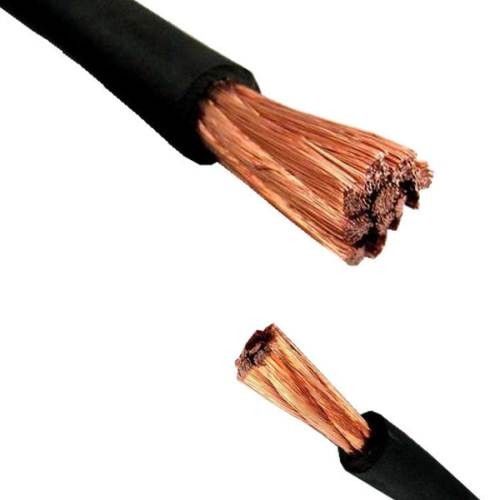

200V Welding Flexible Pure Copper Wire Tinned IEC60245-6 Standard

200V Welding Flexible Pure Copper Wire Tinned IEC60245-6 Standard
200V Welding Flexible Pure Copper Wire Tinned IEC60245-6 Standard 200V Welding Flexible Pure Copper Wire Tinned IEC60245-6 Standard 200V Welding Flexible Pure Copper Wire Tinned IEC60245-6 Standard

Large Image :  200V Welding Flexible Pure Copper Wire Tinned IEC60245-6 Standard

Product Details:
Place of Origin: Hebei,China(Mainland)
Brand Name: New Baofeng
Certification: CCC, CE
Model Number: YH YHF H01N2-D H01N2-E
Payment & Shipping Terms:
Minimum Order Quantity: 500 Meters
Price: Negotiable
Packaging Details: Soft-packing of knitted woven cloth carton wooden plate or iron pan
Delivery Time: 30 Days
Supply Ability: 1000 KM
Detailed Product Description
Voltage: 200V Rated Temperature: 85℃
Conductor Material: Flexible Pure Copper Wire Or Tinned Wire Sheath Material: Rubber Or Neoprene
Standard: CCC , CE Sheath Of Conductor: Polyester Film
High Light:

tinned copper wire

,

twisted copper wire

200V Welding Flexible Pure Copper Wire Tinned IEC60245-6 Standard





Technical Index

Product Type : YH  YHF  H01N2-D H01N2-E

Voltage Class : 200V

Rated Temperature : Continuous working temperature under 85℃ is allowed for the conductor.

Standard : CCC is according with IEC60245-6 standard

CE is according with the EMC regulations of 2004/108/EC (low voltage procedures) the provisions of CE

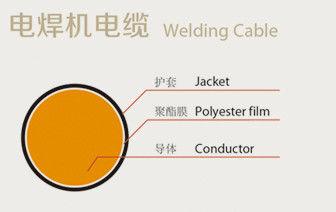

Cable Structure

Conductor Material : Flexible pure copper wire or tinned wire

Sheath of Conductor : polyester film

Sheath Material : Rubber or Neoprene



Application

This product can be applied to special connecting wire for the output cable of various kinds of welding equipments such as electric welder , cogas protective welder and argon welder.



Product Performance

It has the characteristic of chill-proof , heat-resisting , corrosion resisting , inflaming resistant , wear-resisting and is sofe and flexible.



Package

soft-packing of knitted woven cloth  carton  wooden plate or iron pan



                                       YH  YHF H01N2-D H01N2-E

nominal section

nominal diameter

average diamter

conductor resistance at 20℃(Ω/km)

approx weight(cu) kg/km

approx weight(ca)kg/km

min

max

copper

tinned wire

10

322/0.20

7.1

9.2

1.91

1.95

96

141

16

513/0.20

7.7

11

1.21

1.24

154

201

25

798/0.20

10.1

12.7

0.78

0.795

240

279

35

1121/0.20

11.4

14.2

0.554

0.565

336

382

50

1596/0.20

13.2

16.5

0.376

0.393

480

552

70

2214/0.20

15.3

19.2

0.272

0.227

672

803

95

2997/0.20

17.1

21.4

0.206

0.21

912

1011

120

1702/0.30

19.2

23.5

0.161

0.164

1152

1341

150

2135/0.30

21.1

26.4

0.129

0.132

1440

1651

185

1443/0.40

22.2

28.3

0.106

0.108

1776

1921
