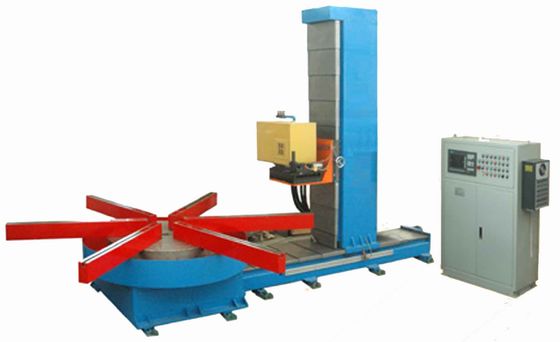

1 Ton Turning Table Welding Gun with Motor Control Lift Up and Down Get Right Position

1 Ton Turning Table Welding Gun with Motor Control  Lift Up and Down Get  Right Position
1 Ton Turning Table Welding Gun with Motor Control  Lift Up and Down Get  Right Position

Large Image :  1 Ton Turning Table Welding Gun with Motor Control Lift Up and Down Get Right Position

Product Details:
Place of Origin: China
Brand Name: TM&B
Certification: CE/ISO
Model Number: TT10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Bubble papers
Delivery Time: 25 Days
Payment Terms: T/T
Supply Ability: 20 Sets/month
Detailed Product Description
Model: TT10 Max Loading: 1000 Kg
Working Table Diameter: 1000 Mm Rolling Type: Motor By VFD
Lifting Type: Brake Motor Revolving Speed: 0.05-1.0 Rpm
Lifting Speed: 1 M/min
High Light:

automatic welding positioner

,

Pipe Welding Positioner



1 Ton Turning Table Welding Gun with Motor Control  Lift Up and Down Get  Right Position



Description

      The turning table may revolve with the workpiece . The welding gun was fixed on the column and lifting up/down. It is a special type L welding positioner for customer.

     L-type welding positioner oftern  be as a rolling and tilting special equipment.  may drive the workpiece  rotation by VFD control speed . The workpiece may revolve 360 ° and weld the circle seam . L-frame can turn the workpiece 360 ° . Change the workpiece seam to the well position for welding of complex components and special shapes.

Main Technical Parameters



Model

LRT300

LRT600

LRT1200

LRT3000

LRT5000

LRT10000

Max Loading (Kg)

300

600

1200

3000

5000

10000

Rotation Speed (rpm)

0.05-1.5

0.05-1.5

0.05-1.5

0.03-1

0.03-0.8

0.03-0.8

Tilting Speed (rpm)

Manual

1.1

0.6

0.23

0.23

0.14

Working-table Diameter (mm)

Ø600

Ø700

Ø1200

Ø1400

Ø1500

Ø2000

Rotation motor(kw)

0.37

0.55

1.1

1.5

2.2

4

Tilting motor(kw)

0.37

0.75

1.5

2.2

3

5.5





Product Application:

     With the working bench may  turning and tilting, the work piece stays in the best position for being welded or assembled.

Product Advantage:


     1. The VFD drive brand as Schneider ,France brand.

     2. The motor brand as Siemens , Germany brand

     3. Lower voltage electrical components brand as Schneider , France brand

     4. The machine by shot blasting to remove steel rust





Competitive Advantage:



    1.Convenient, high efficiency

    2.high quality

    3.Reasonable price

    4.good service













1 Ton Turning Table Welding Gun with Motor Control  Lift Up and Down Get  Right Position 0

LRT1200 / Special worktable /



1 Ton Turning Table Welding Gun with Motor Control  Lift Up and Down Get  Right Position 1

  LRT3000 / Special worktable /
