Product Details:
|
| High Light: | pipe welding positioner,automatic welding machines |
||
|---|---|---|---|
1. Welding positioner function
Welding turning positioner is mainly used to place the work-piece in the best position for welding and assembling with the worktable elevating, rotation, tilting, which can be used for various automatic or manual welding, butt welding or face welding of pipe, as well as welding of shafts, discs, barrel, etc.
With advantages of compact volume, good appearance, light weight and easy operation. The positioner can be supplied for interfacing with robot or welding manipulators, to realize the welding automation.
2. Feature and advantage
● Welding positioner consists of turning and overturning mechanism of working table
● Turning and overturning make the work-piece to reach a reasonable welding and fitting angle by the elevating of the working table, the turning of the working table is frequency conversion which can get a safety welding speed
● Because of the offset from center and gravity center ,To the longer and more offset from gravity center work-piece, large model should be chosen. We can supply you the suitable product
3. Technical data
|
Type |
ZHB-1 |
ZHB-3 |
ZHB-6 |
ZHB-12 |
|
|
Loading capacity (kg) |
100 |
300 |
600 |
1200 |
|
|
Rotary speed of working table (rpm) |
0.1-1 |
0.1-1 |
0.09-0.9 |
0.04-0.4 |
|
|
Turing speed of working table (rmp) |
Manual/ electrical |
Manual/ electrical |
0.5 |
0.5 |
|
|
Working table dimension (mm) |
Φ400 |
Φ600 |
Φ1000 |
Φ1200 |
|
|
Working table turning angle (°) |
°0-90° |
||||
|
Motor power (kw) |
Rotation |
0.18 |
0.37 |
0.55 |
0.75 |
|
Turning |
/ |
/ |
0.75 |
0.75 |
|
|
Speed adjusting method |
Frequency conversion step-less control |
||||
If you have any question please let me know, we are a leading pioneer in manufacturing in automatic welding machine, Friendship Machinery is always together with you.

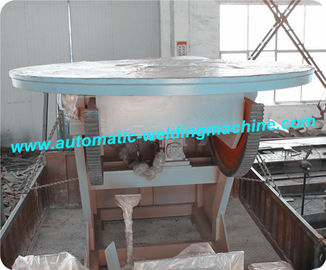

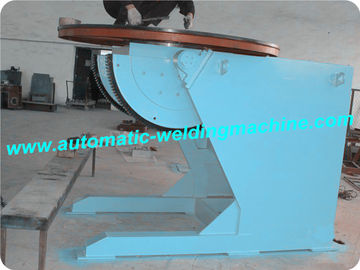

| Welding posiioner has a big chuck to catch the work-piece to ensure stable rotating, it could working together with welding manipulator, if you want to know more information please search Luk Mankai at youtube | |

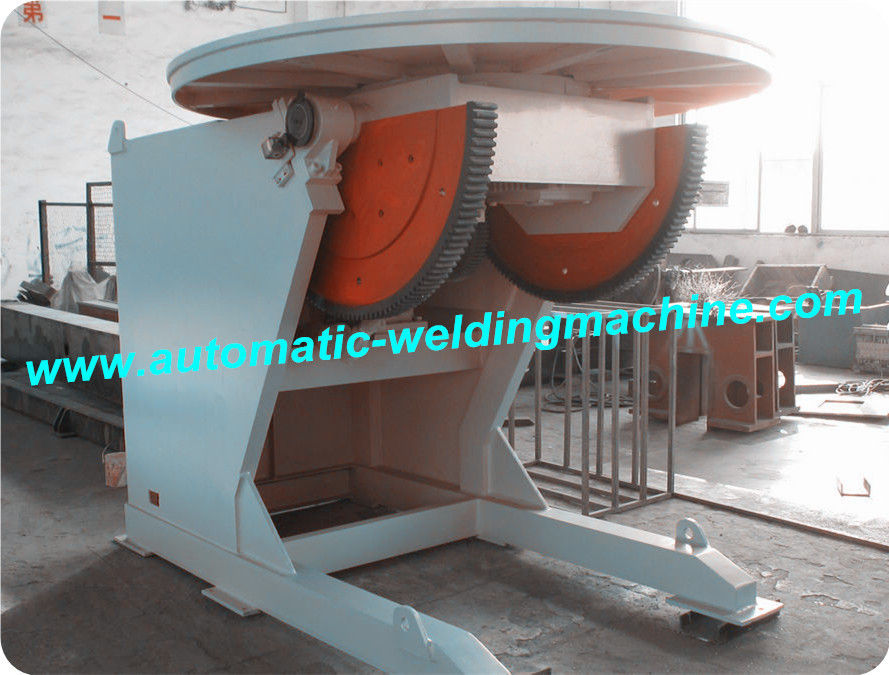

| It could rotating from 0 to 120 degree, welding positioner is best friends in welding. |
