Standard 2 Ton Revolving Welding Rotary Table Metallurgical Type With 1.2m Worktable

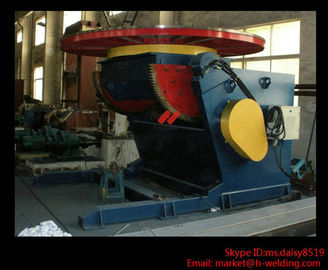

Large Image : Standard 2 Ton Revolving Welding Rotary Table Metallurgical Type With 1.2m Worktable

Product Details:

Place of Origin:	China
Brand Name:	H-WELDING
Certification:	CE
Model Number:	HB20

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	negotiation
Packaging Details:	Mainframe naked in container, electrical control box in plywood cases (Non fumigation) then in container.
Delivery Time:	15 working days after received your payment
Payment Terms:	30% T/T as advance payment when sign the contract, 70% T/T as balance payment before delivery or 100% irrevocable LC at sight
Supply Ability:	30sets per month

Contact Now

Detailed Product Description

Product Name:	Standard 2Ton Revolving Pipe Welding Positioners	Application:	Tank Loading And Rotary
Type:	Self Adjustable	T Slot No.:	8
Revolve Speed Control:	VFD	Tilting Speed:	Constant
Work-table Shape:	Round Or Custom	Special Design:	Available
Loading:	2000kg	Lifting Adjustable:	NO
Highlight:	pipe welding positioners

Standard 2Ton Revolving Pipe Welding Positioners Metallurgical With 1.2m Worktable

Specifications:

Standard 2 Ton Revolving Welding Rotary Table Metallurgical Type With 1.2m Worktable 0

No.	Item
1	Model	ZHB-03	ZHB-06	ZHB-12	ZHB-30	ZHB-50	ZHB-100
2	Rated load (kg)	300	600	1200	3000	5000	10000
3	Max eccentric distance (mm)	100	150	200	200	200	200
4	Max distance of the gravity center (mm)	150	200	250	300	300	400
5	Worktable φ D (mm)	600	1000	1200	1400	1500	1800
6	Tilting angle(°)	0-90	0-90	0-120	0-120	0-120	0-120
7	Rotating speed (rpm)	0.15-1.5	0.11-1.1	0.11-1.1	0.11-1.1	0.05-0.5	0.03-0.3
	Speed control	VFD for rotation speed
8	Tilting speed (rpm)	manual	1.1	0.4	0.23	0.2	0.14
9	Rotating motor power(kW)	0.18	0.55	0.75	1.5	2.2	3
10	Tilting motor power(kW)	/	0.75	1.5	2.2	3	4
11	Worktable T slot qty	4	4	6	6	6	6

Description:

The equipment should be installed in the place without industry gas, steam, salt fog and chemistry aggradations and other harmful gas surrounding.
Also the equipment is far from the acutely shaking and bumping place.

Applications:

Loading vessel and rotary it with a VFD speed control
Making work-piece at a optimum welding position

Competitive Advantage:

Pressure vessels
Pipe manufacturing industries
Wind power fabrication

Standard 2 Ton Revolving Welding Rotary Table Metallurgical Type With 1.2m Worktable 1

Standard 2 Ton Revolving Welding Rotary Table Metallurgical Type With 1.2m Worktable 2
