Product Details:
|
High Light: | pipe welding positioner,automatic welding machines |
---|

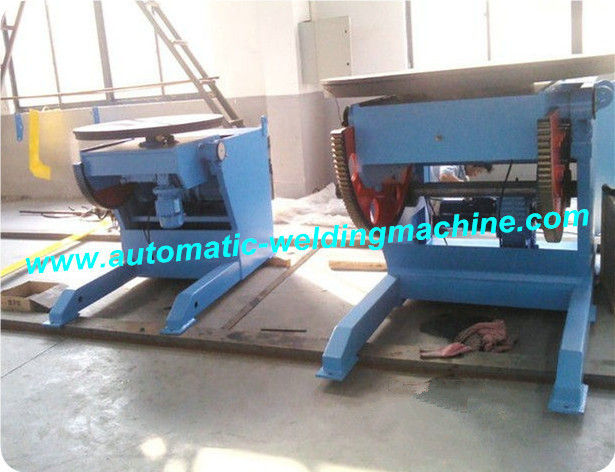

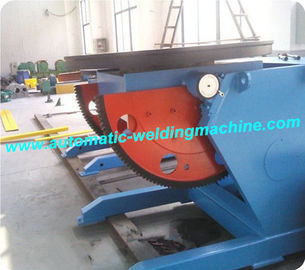

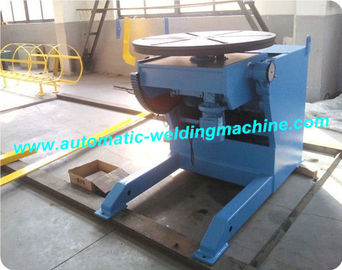

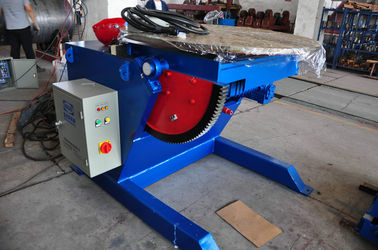

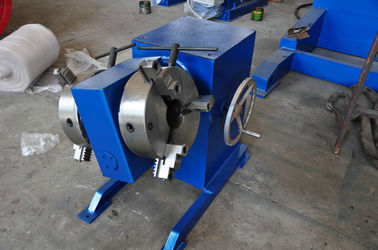

0 Degree - 120 Degree Tilting Pipe Welding Positioners With Foot Switch
Description:
1. These models are special made as per customers' requirement, which added the height of base,
2. Positioner can tilting from 0 to 120°, rotating 360° by VFD.
3. Voltage standard is 380V-3PH-50HZ, but we can make 110-575V as per your requirement
4. This machine is controled by remote-control box, optional foot switch
5. Other more special requirements, please contact us
6. This machine can lifting by bolts
Specifications:
NO. |
Technical Parameter |
Type |
||||||
HB30 |
HB50 |
HB100 |
HB150 |
HB200 |
||||
1 |
Rated loading (Kg) |
3000 |
5000 |
10000 |
15000 |
20000 |
||
2 |
Max eccenteric distance (mm) |
200 |
200 |
250 |
250 |
|||
3 |
Max distance of gravity center (mm) |
300 |
400 |
500 |
600 |
|||
4 |
Working table size (mm) |
φ1400 |
φ1500 |
φ1800 |
φ2000 |
φ2200 |
||
5 |
The amount of table T-beam groove |
6 |
||||||
6 |
Tilting angle (°) |
0° to +120° |
||||||
7 |
Rotating speed (rpm) |
0.05-0.5 |
0.03-0.3 |
|||||
8 |
Rotating power (KW) |
1.5 |
2.2 |
3 |
4 |
5.5 |
||
9 |
Tilting speed (rpm) |
0.3 |
0.14 |
|||||
10 |
Tilting power (kW) |
2.2 |
3 |
4 |
5.5 |
7.5 |
||
11 |
Structure of rotating axes |
Tilting support |
||||||
15 |
Speed adjusting way |
Rotating speed VFD |
||||||
Tilting speed constant |
Applications:
Tilting Welding Positioner used in many industries such as pipe, tank, pressure vessel, boiler, freezing equipment, power station construction, metallurgical, engineering machinery, marine building, and petro-chemical industries etc.
(Rotating and Tilting Type Pipe Welding Positioner)
