WP06 Welding Positioner Working Table Diameter 1000mm Revolving DC Change Speed

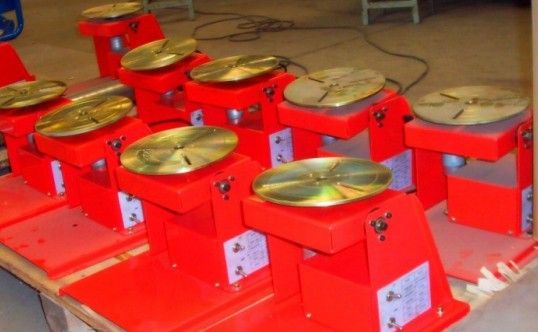

Large Image : WP06 Welding Positioner Working Table Diameter 1000mm Revolving DC Change Speed

Product Details:

Place of Origin:	China
Brand Name:	T M & B
Certification:	ISO/CE
Model Number:	WP06

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Bubble papers
Delivery Time:	10 daya
Payment Terms:	T/T
Supply Ability:	10 Sets/month

Contact Now

Detailed Product Description

Max Loading:	600 Kg	Rotation Power:	0.75 K W
Tilting Power:	0.75 Kw	Rotation Speed:	0.1-1 Rpm By VFD
Tilting Speed:	1.1 Rpm	Working Table Diameter:	2000 Mm
Highlight:	Pipe Welding Positioner

WP Series Fixed Welding Positioner

WP series welding positioner as a common positioner, widely usesd in the boiler, construction , oil field etc. The workpiece may tilt and rotation .

Main Technical Parameters

With the working bench going up or going down, turning and manipulating, the work piece stays in the best position for being welded or assembled.

Product Advantage:

Convenient, high efficiency
high quality
Reasonable price
good service

Competitive Advantage:

Electric control system composed of electric cabinet and manual control panel making it easy to operate.
Equipped with slewing bearing which helps increase the loading capacity and makes the rotation smooth.
Worktable is manufactured with six M30T bolt grooves used to clamp and position the work pieces.

Specification:

Type	Max Loading Kg	Table Diameter mm	Revolve speedrpm	Tilting Angle °	Tilting Power KW	Revolving Power KW
TP05	50	300	0---3	0---90	By hand	0.12
TP1	100	400	0---3	0---90	By hand	0.2
TP3	300	600	0---2	0---90	By hand	0.37
TP6	600	800	0---1	0---120	0.55	0.75
TP12	1200	1000	0---1	0---120	1.1	1.1
TP20	2000	1200	0---0.9	0---120	1.5	1.5
TP30	3000	1400	0---0.8	0---120	2.2	1.5
TP50	5000	1600	0---0.7	0---120	3	2.2
TP100	10000	2000	0---0.6	0---120	7.5	4
TP200	20000	2500	0---0.5	0---120	11	7.5
TP300	30000	3000	0---0.4	0---120	18.5	11
TP500	50000	3000	0---0.4	0---120	22	15
Remote control box line length:10m The speed adjustment way: frequency conversion
